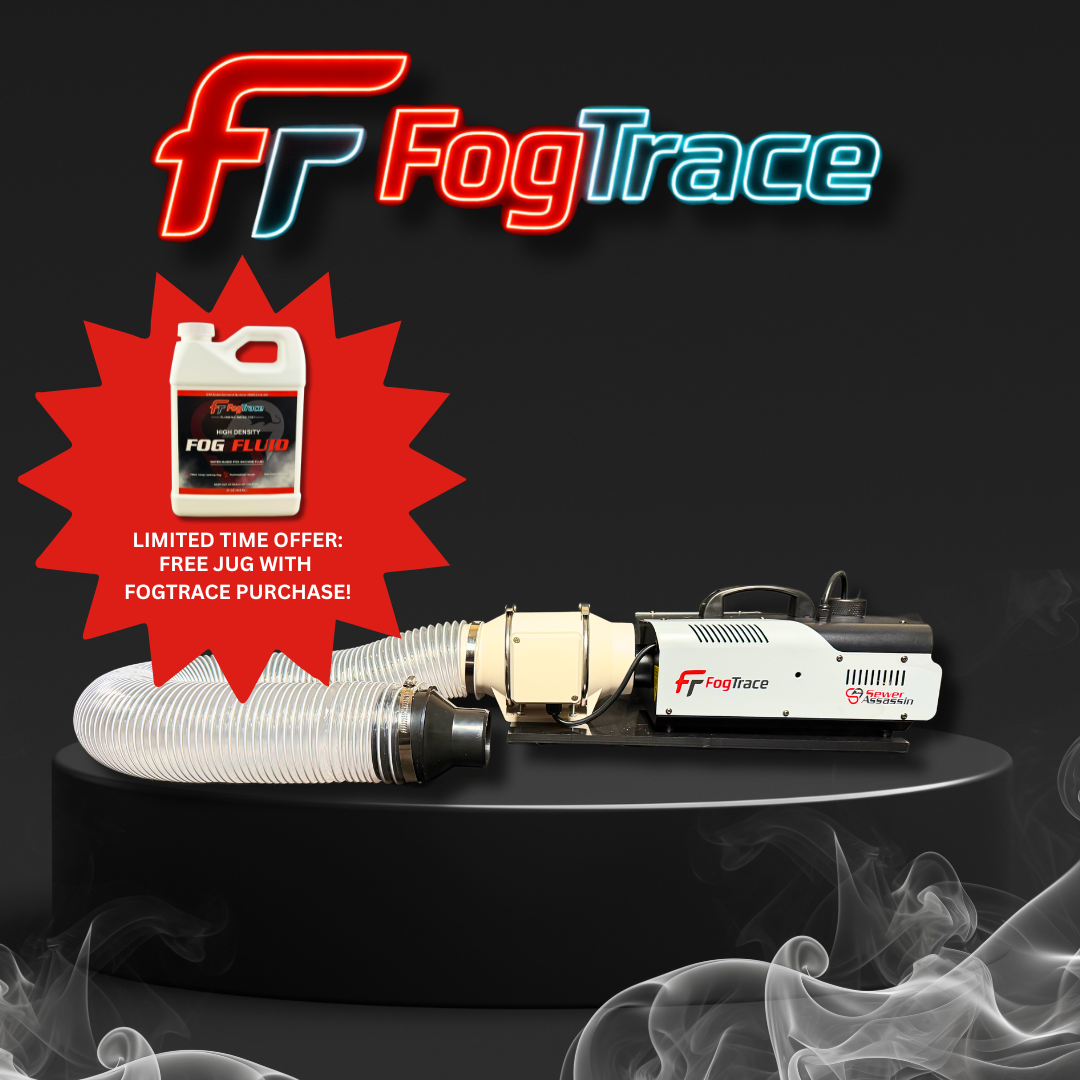

FogTrace

Components are mounted on a solid 19’ X 8” X 1/2” High-Density Polyethylene base.

Components consist of.

High output commercial grade fog machine

• Power: 1000 Watt
• Voltage: 90-130 Volts, 50/60 Hertz
• Warm-up Time: 3-4 minutes
• Tank Capacity: 1 Liter
• Fog Output: Approximately 5000 CFM (cubic feet per minute)
• Control: Wireless Remote Control and Wired Manual Control
• Wireless Remote Range: Up to 165 feet (50 meters)

Features:

• Manual control with one-key lock function for automatic spraying after preheating.
• Multiple temperature controllers for safety.
• Portable, compact, and lightweight design.
• Designed for use with high density water-based fog fluid.

4 in line duct fan

Material: Housing/Body

• Material: High-impact ABS
• Design: Cylindrical in-line shape optimized for airflow with integrated 4″ duct collars on both ends
• Feature: Corrosion-resistant and lightweight

 Motor

• Type: Permanently lubricated, thermally protected AC motor
• Mounting: Centrally mounted to reduce vibration and noise
• Lifespan: Designed for continuous operation (50,000+ hours rated)

Impeller/Fan Blade

• Type: Centrifugal
• Material: Durable plastic blades for efficient air movement
• Function: Generates strong airflow with lower noise levels

Wiring and Power

• Input Voltage: 110V–120V AC (standard North American)
• Safety: Equipped with thermal overload protection for safe operation

Size: 4 inch duct diameter.

Air Flow Capacity: 280 CFM (Cubic Feet Per Minute).

Power Consumption: 50 Watts.

Speed: 2200 RPM or 2300 RPM.

Voltage: 110V or 120V.

Frequency: 60Hz.

4″ x 5′ Flexible Clear PVC Fume Hose – Puncture-Resistant with Carbon Steel Wire Coil

This highly durable hose is made from flexible, clear PVC and reinforced with a carbon steel wire coil for added strength. It is puncture-resistant, ideal for handling fumes, and designed for long-lasting performance in demanding environments.

4 Inch to 2-1/2 Inch Reducer Nozzle

PREMIUM BUILD: Reducer made with high quality ABS plastic for long-term durability and to withstand the abrasive nature of smoke testing.

Overall weight including all components: 15lbs

Overall size: 23” X 8” X 7”

Read The FogTrace WarrantyHere

Disclaimer: Shipping is Free. Due to high demand, please allow up to 14 days for delivery.
